Intended use
This unit is intended for visual inspection of the pump impeller and diffuser passages.
Brief description

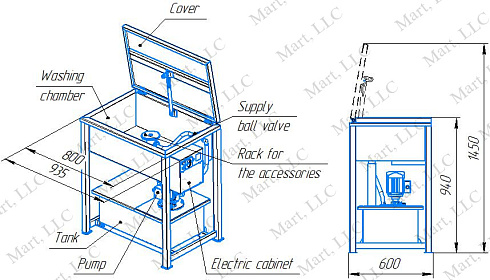

This unit consists of:
Washing machine, water tank, set of accessories. The washing machine includes a lid-type bath provided with the support legs. A pump is bypassed under the bath. Water is drained through the drain hole in the bottom of the bath back into the tank. A control cabinet is mounted on the bath. A rack for the accessories is located inside the bath. Depending on the pump size appropriate accessories are available on the rack. A ball valve is provided for regulation of the flow rate during inspection of the pump impellers and diffusers.
The bath and the tank are made of stainless steel.
Configuration options
- Base geometry
- Various impellers and diffusers accessories available
Weight: 55 kg

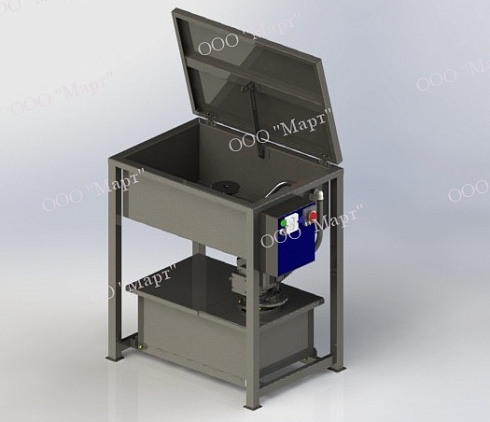

M.M.005-10 Flow measuring unit and washer of the pump actuators
This unit is intended for visual inspection of the pump impeller and diffuser passages.
More Info
Characteristics
| Weight, kg | 55 |
