This washing machine is designed for solvent cleaning of ESM shafts that are part of the ESP.
Brief description

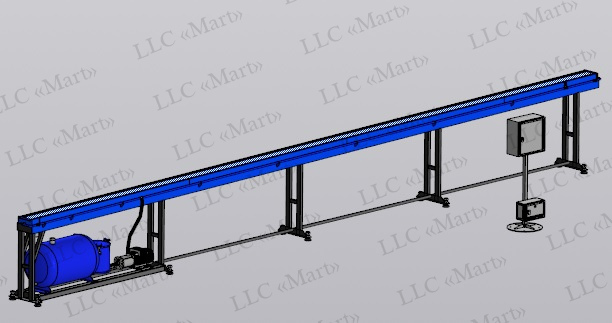

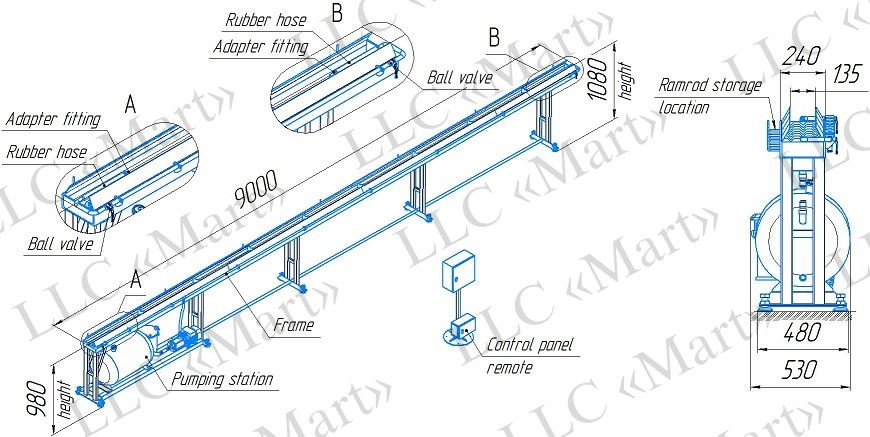

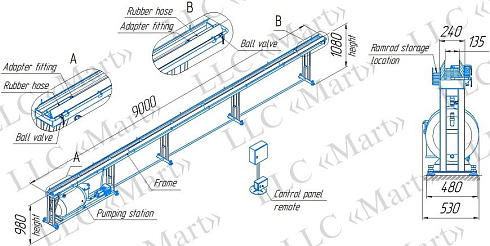

The washing machine consists of a frame, a pumping station and a remote control panel.
The frame is made in the form of a sealed gutter sloping along the length, mounted on racks. On one side of the chute there are pipelines for supplying detergent solution to 2 shafts at the same time. On the other side of the chute there is a storage place for a ramrod for cleaning the central hole of the ESM shaft. The shaft is connected via a flexible rubber hose and appropriate accessories. The pumping station consists of a tank, an electric pump and a filter unit.
Setting the washing cycle time by timer on the control panel.
Configuration options
- Washer geometry
- Various shaft models accessories
- Protective canopy available
Technical specifications
| Maximum power consumption, kW | 1.7 |
| Washing fluid | Solvent |
| Tank capacity, l. | 150 |
| Weight (without washing fluid), kg | 480 |
