Intended use
This bench is intended for assembly of the protectors (max.size 103 mm) that constitute a part of the electric submersible pumps for reservoir fluid extraction.
Brief description

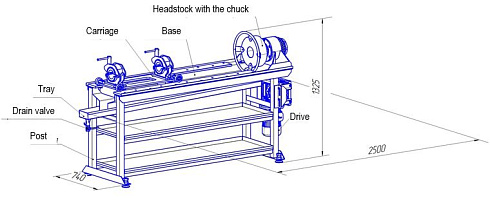

The bench includes:
A frame equipped with the posts to fix the bench to the floor, carriage with the clamps for the protector case attachment; this carriage freely moves along the guideways of the frame; headstock with the chuck, and a drive. Oil collecting tray, drain valve, electric cabinet and power terminal box are mounted on the frame.
Configurations:
- Frame geometry
- Various clamp models available
Power consumption: 2.2 kW
Weight: 470 kg
М.СТ.048 Protector assembly bench
This bench is intended for assembly of the protectors (max.size 103 mm) that constitute a part of the electric submersible pumps for reservoir fluid extraction.
More Info
Characteristics
| Power consumption, kW | 2.2 |
| Weight, kg | 470 |
Description
Characteristics
| Power consumption, kW | 2.2 |
| Weight, kg | 470 |
