This bench is designed for protector disassembly and assembly.
Brief description
The protector assembly/disassembly bench includes a frame and two vices mounted.
The frame is sealed chute type mounted on racks. One vise is standstill, the other is mounted on a movable cart.
The cart with vices can be fixed to prevent movement along the frame.
The oil (etc.) from the chute is drained into a container from which it (oil, etc.) can be drained through a ball valve.
An air-preparation unit from a workshop pneumatic system with a pressure regulator and a ball valve is installed under the frame. A quick-release connection is installed to connect the pneumatic tool hose (not included in the delivery package).
Vise equipment can be:
-- friction vices with a set of inserts (sizes are subject to agreement)
---- M.OSN.004
---- M.OSN.008
---- M.OSN.009

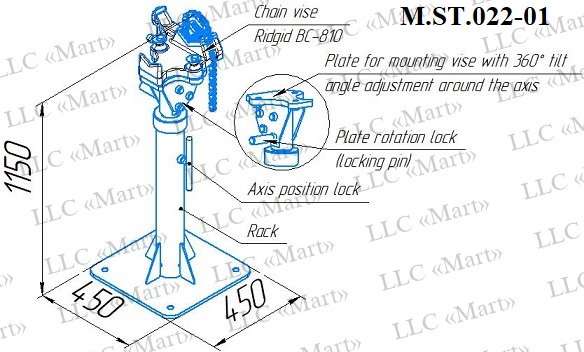

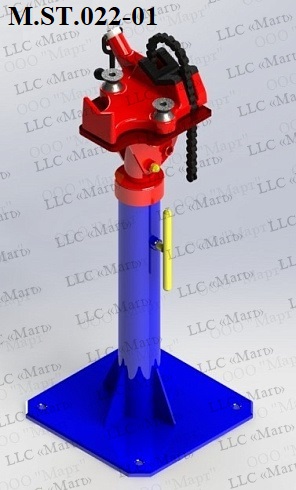

-- vices Ridgid BC 610 or BC 810
-- bench yoke vise Ridgid 27

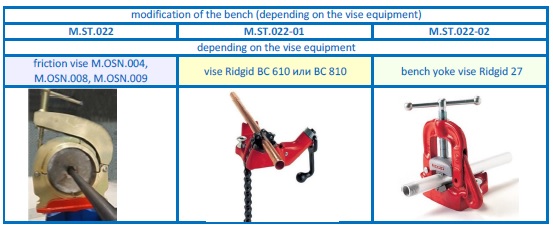

Modification of the bench (depending on the vise equipment)
Configuration options
- Base geometry
- Clamps (friction clamps, Petol, etc.) available.
