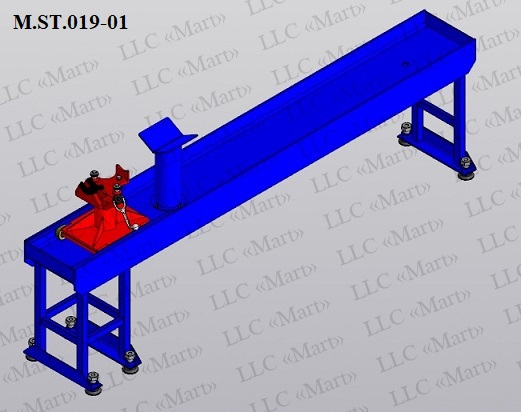

This bench is designed for the protector disassembly.
Brief description
The bench includes:
consists of:

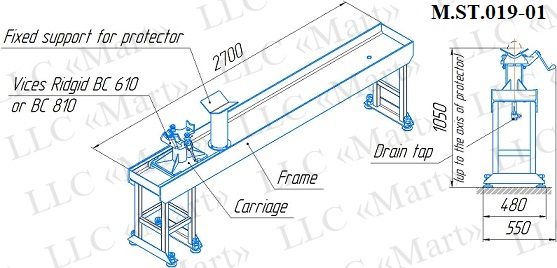

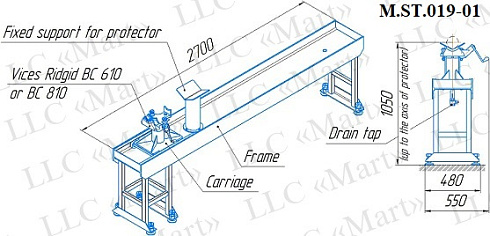

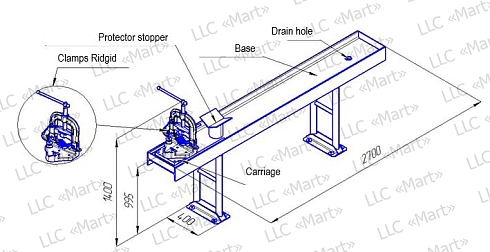

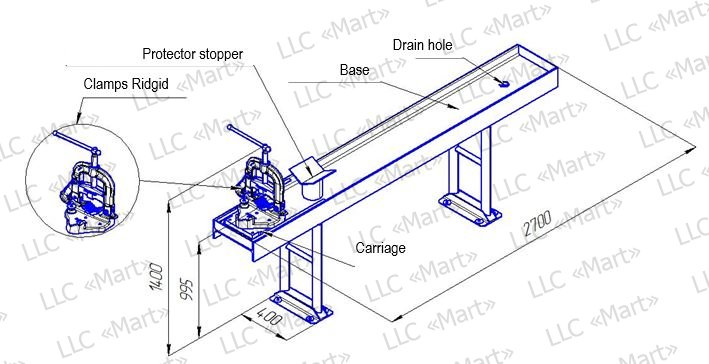

- A sealed base with restraints against tilting the carriage, a fixed stop for protector;
- A carriage with a plate for fixing vices, moving manually;

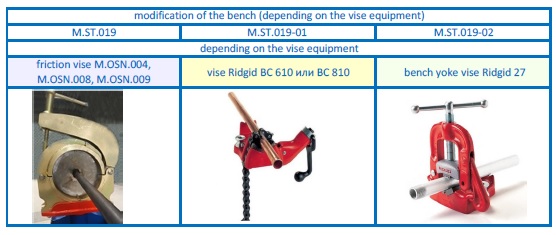

- Vices (model to choose from in agreement with the customer):
-- friction vices with a set of inserts (sizes are subject to agreement)
---- M.OSN.004
---- M.OSN.008
---- M.OSN.009
-- vices Ridgid BC 610 or BC 810
-- bench yoke vise Ridgid 27
Configuration options
- change the geometric parameters of the base.
- change the vices model.
