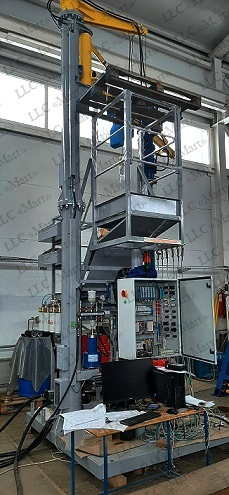

The bench is designed for filling protectors (treads) with oil (synthetic and mineral), checking the opening and closing pressure of valves, leak testing, running in protectors with axial and non-axial loads, and checking energy characteristics.
Brief description

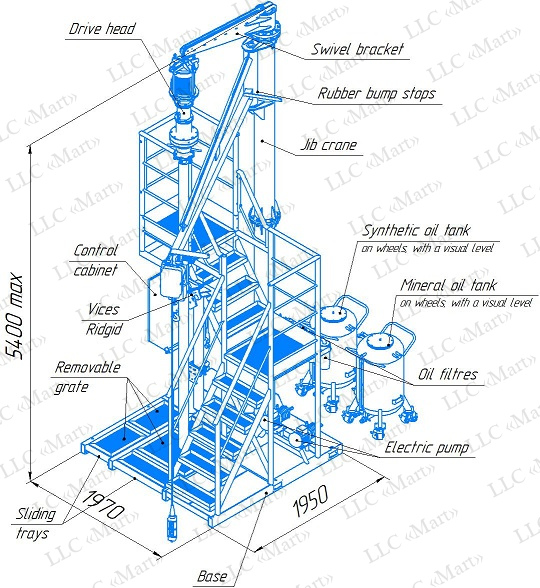

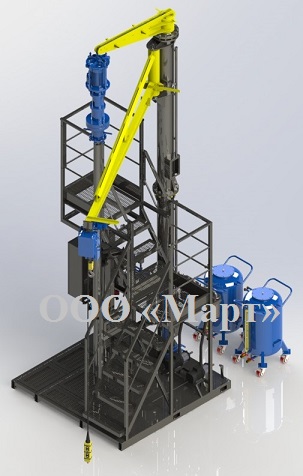

The bench consists of a base, a jib crane, a swivel bracket, a drive head, electrical circuitry, a pneumatic-hydraulic system, tanks for mineral and synthetic oils, and a scope of supply.
The arrangement of bench components, a scope of supply, equipment installation supervision and metrological attestation of the bench are agreed with the Customer.
Configuration options
- Testing bench geometry
Technical specifications
| Protector | |
| Protector length , mm, max | 3700 |
| Protector weight, kg, max | 250 |
| Bench | |
| Jib crane lifting capacity, kg, max | 250 |
| Overhead electric hoist lifting capacity, kg, max | 500 |
| The working position of the tested protector | vertical |
| The oil supply pumps pressure in protector cavity, bar, max | 5.5 |
| Power consumption, kW. | 7 |
| Synthetic oil tank volume, l | 140 |
| Mineral oil tank volume, l | 140 |
| Power module | |
| Power consumption, kW. | 5.5 |
| Axial force, kg, max | 3000 |
| Rotation speed, rpm, max | 3000 |
