Intended use
This unit is intended for varnish impregnation of the ESM stator.
Brief description

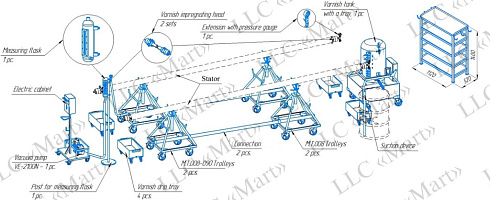

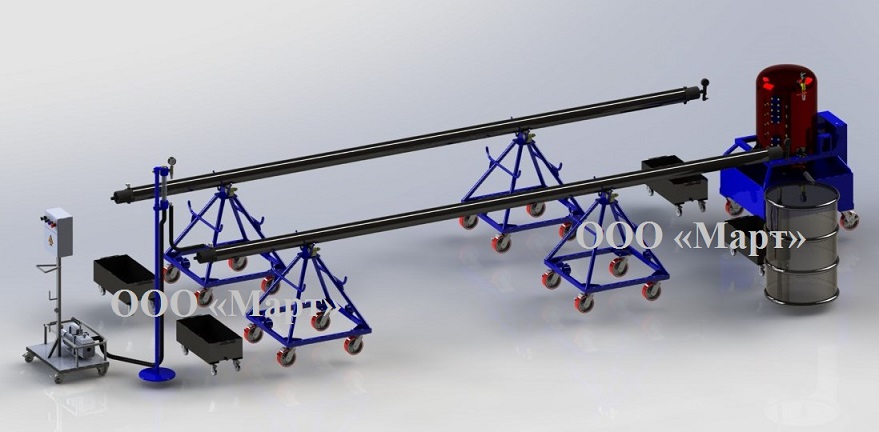

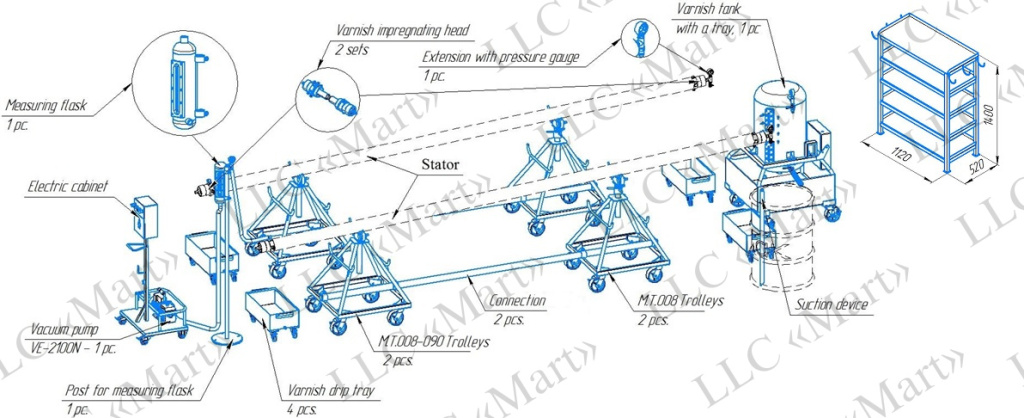

The impregnation unit for 2 stators of the electric submersible motor comprises:
Carriages М.Т.008-90 (2 pcs) and М.Т.008 (2 pcs), varnish container (1 pc), vacuum pump mounted on the carriage with control pulpit (1 pc), posts with clear glass bottle for level control (1 pc), wheeled varnish collecting trays (4 pcs), suction unit (1 pc), set of hoses (1 set), set of accessories (for ESM, sizes 103, 117, 130) (2 sets each), heat insulating mats (L=9m) for the ESM of 130mm (2 sets).
Varnish container has sight glasses for varnish level control, automatic temperature control heating system, removable upper cleanout door and wheeled tray.
Configuration options
- Range and number of sets
- Component geometry
- Customized accessories
Weight: 250 kg
M.ST.025 ESM stator varnish impregnation unit
This unit is intended for varnish impregnation of the ESM stator.
More Info
Characteristics
| Weight, kg | 250 |
