Intended use
This bench is intended for verification of the ESM stator alignment.
Brief description
This bench includes:
Skid for the tool.
Stator skid.

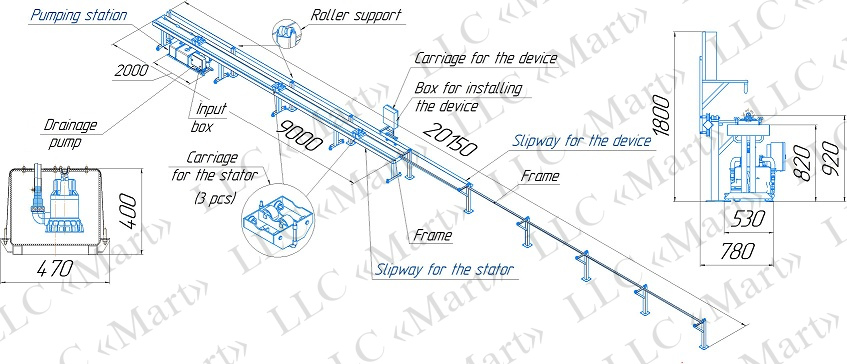

Tool skid includes a base with adjustable supports, roller supports and carriage for the tool transfer.
Stator skid includes a base, carriage with stopper and supports able to carry stators of various sizes.
Configuration options
- Base geometry
Complete sets
Set of roller supports for the stator carriage.
Weight: 500 kg

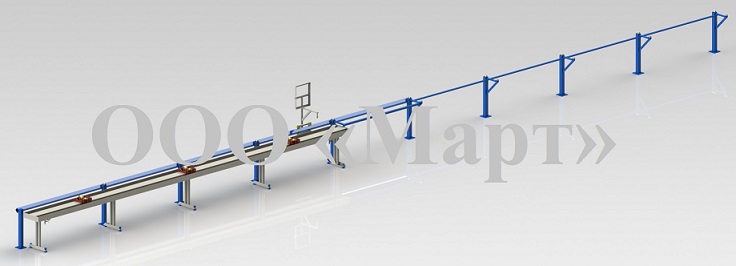

M.ST.023 ESM stator alignment verification bench
This bench is intended for verification of the ESM stator alignment.
More Info
Characteristics
| Weight, kg | 500 |
Description
Characteristics
| Weight, kg | 500 |
