This line is intended for disassembly of the ESP sections.
Brief description

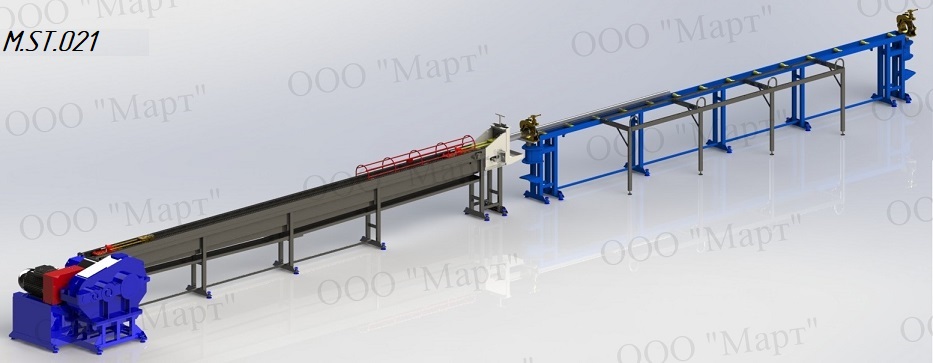

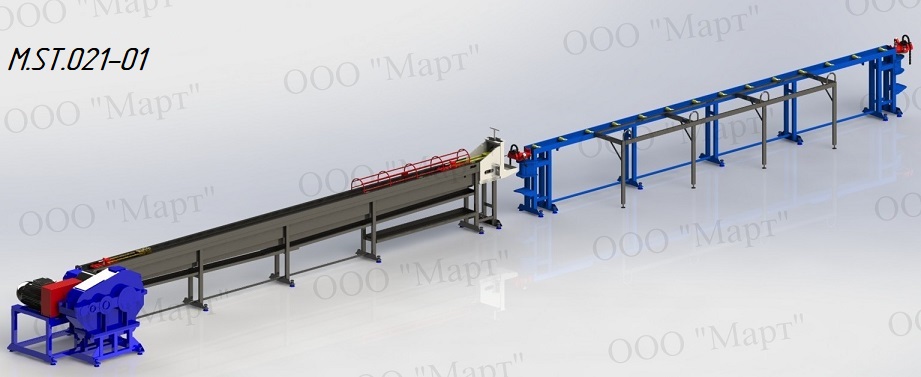

This line includes:
Power-operated carrier
ESP housing berth
Set of accessories

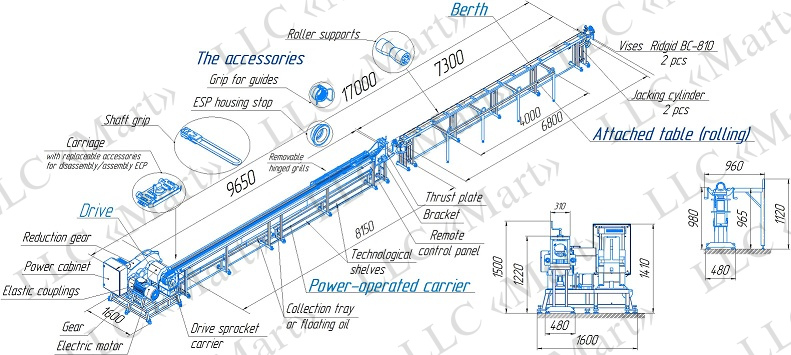

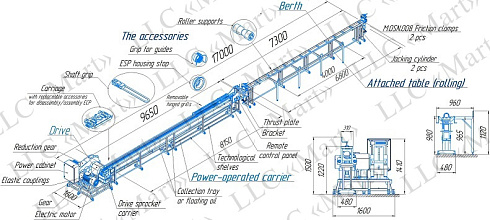

Power-operated carrier comprises the following elements:
Drive unit consisting of gearbox, electric motor, brake, gear-type coupling, electric cabinet, frequency converter, limit switches, drive sprocket pulley.
Conveyor system consisting of leakproof base, stopper, protective guard,carriage, clamp, remote control and a shelf for accessories.
ESP housing berth comprises the following elements:
Base, rolls, friction clamps M.OSN.008 (including bush set for 92, 103, 117,130 (or any tailor-made type up to Ø 130mm), reeling table.The line is complete with corresponding accessories.
Technical specifications
|
Rate of stage package extraction from the housing and shaft extraction from a stage package |
4,5±0.5 m/min |
|
Force of stage package extraction from the shaft housing and shaft extraction from a stage package |
130 kN, min |
| Pushing force of the stage packages into the housing, t | 13 |
| Power consumption | 15 kW |
| Weight | 3000 kg |
- Frame geometry
- Position of the drive relative to the Power-operated carrier
- Range and quantity of accessories
- Location of the reeling tables

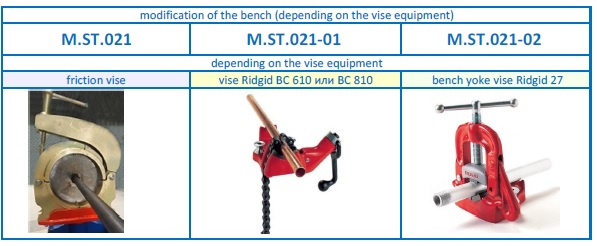

Modification
