The repair line is intended for the repair of the main cable lines of the submersible pumps for oil production.
Brief description

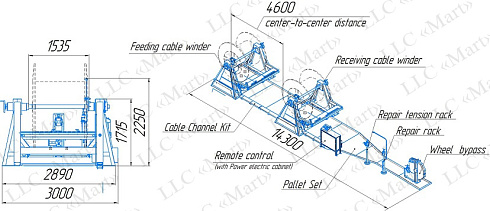

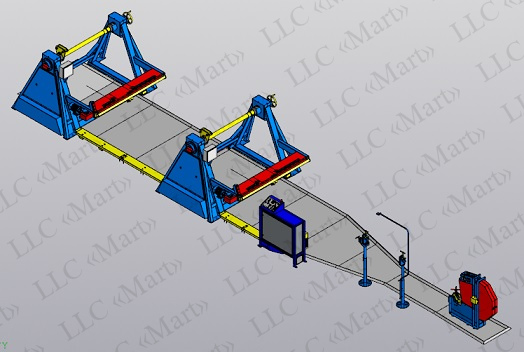

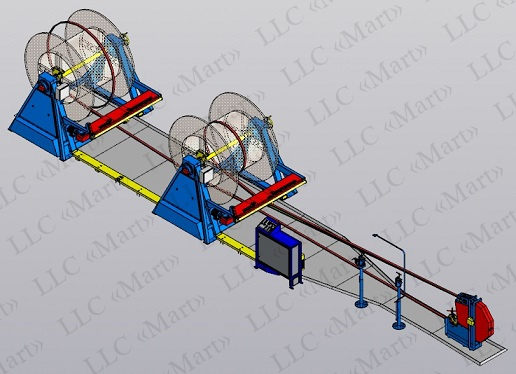

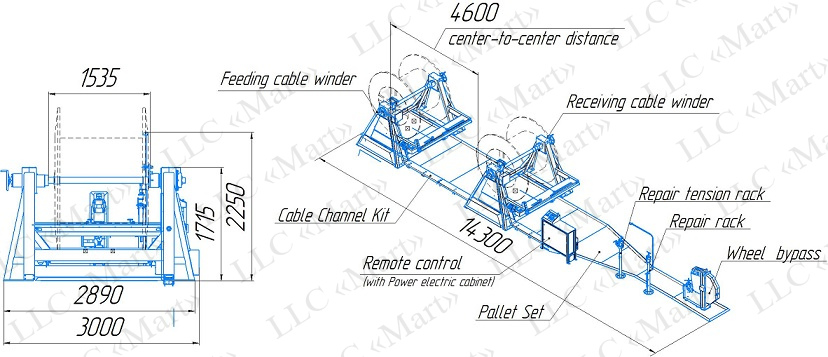

This line comprises:
- Feeding and Receiving cable winders for cable supply and receiving as well as for cable laying
- Bypass wheel with a cable length measuring unit
- repair racks to keep the cable section to be repaired from moving and twisting.
- a set of pallets for collecting oil product residues (along the entire length of the cable movement).
- a set of cable channels
- a set of accessories (mandrel for cable drums)
The work on the line is controlled from a central control panel.
Configuration options
- Frame and sliding unit geometry
Technical specifications
| Drum with cable | No. 17 ... 22 |
| Reel weight with cable | 8 t. |
| The section of the repaired cable is from | 3x13 mm2 to 3x42mm2. |
| Winding speed | 0 to 35 rpm. (with the possibility of smooth adjustment) |
