Current drying unit is intended for drying of the ESM stator after the stator windings are impregnated with varnish.
Brief description

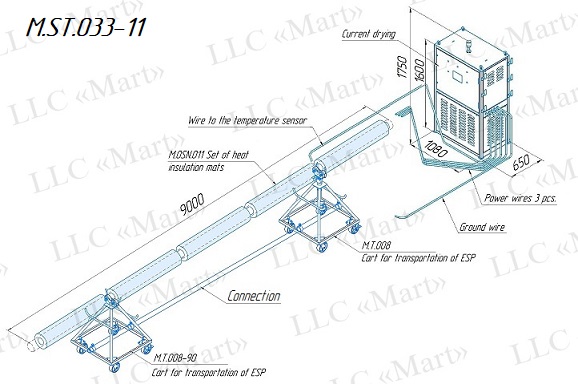

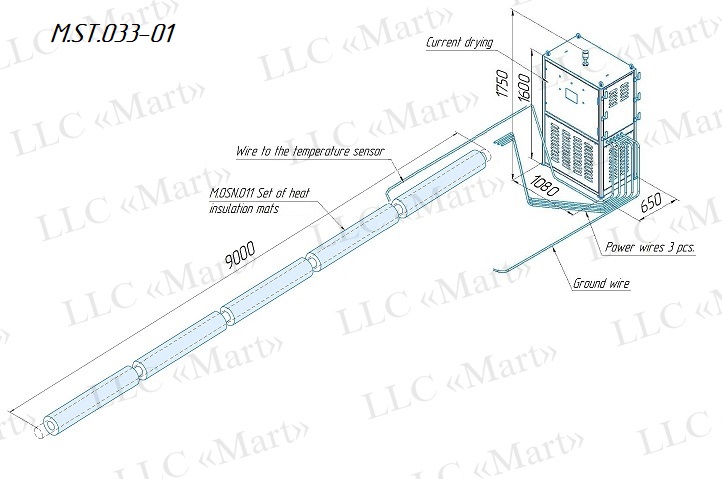

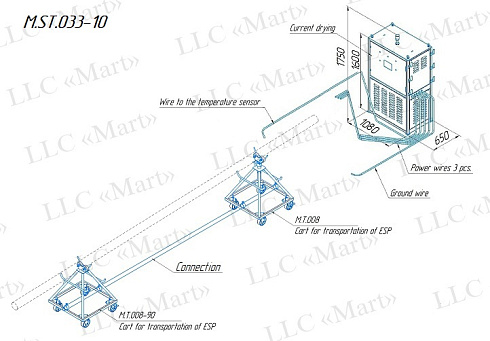

The Current drying unit of the stators in the maximum configuration (M.ST.033-11) consists of:
- Current drying for stators

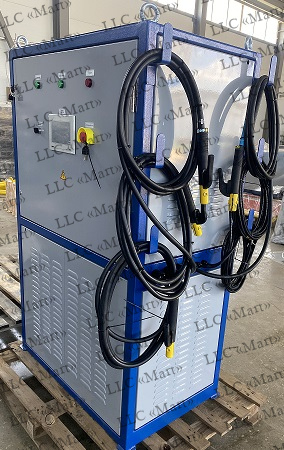

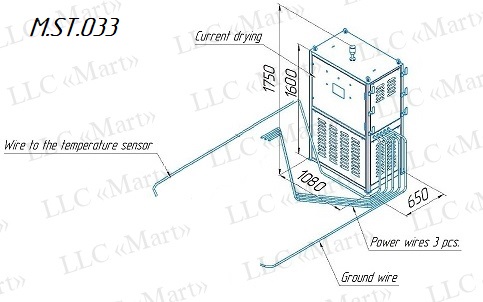

The Current drying design represents a current transformer connected to the 380V (480V) mains via a thyristor power regulator with automatic control of the transformer power supply.
TheCurrent drying comprises a process automation bench, a set of connector wires, a transformer, a temperature transmitter and a limit switch for closing the winding connection zone fencing.

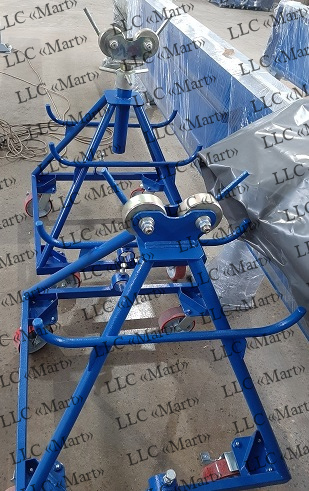

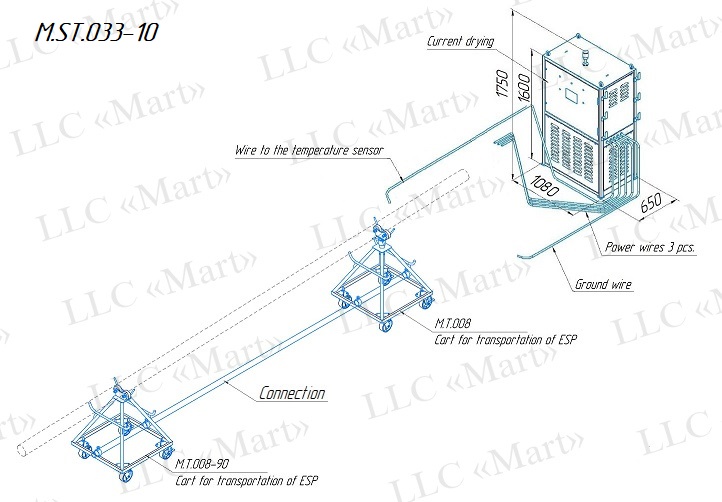

- The Trolley for stator M.T.008 and M.T.008-090 for 1 pc.
- Connection for trolleys

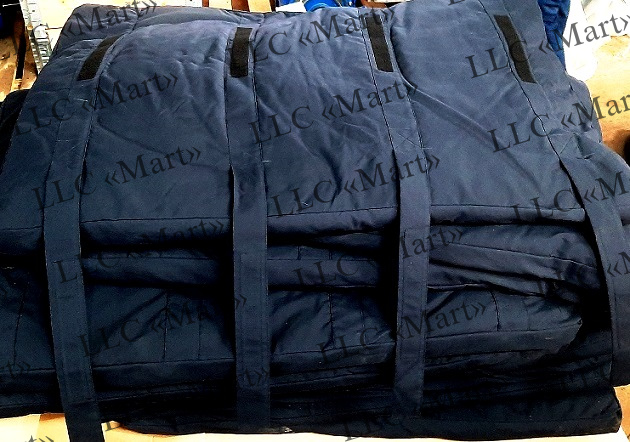

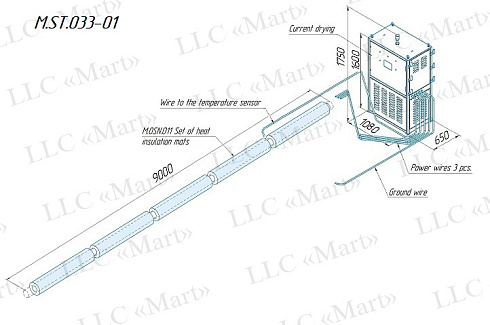

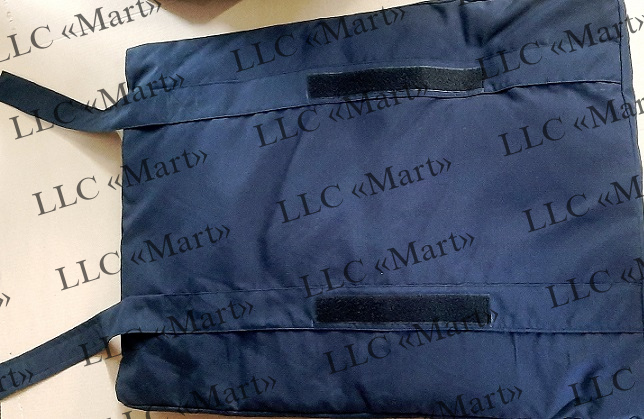

- Heat insulation mats Set M.OSN.011 for ESM stator (for lengths of 9m to Ø130mm) - 1 set.
Technical specifications
| Drying unit weight (in the minimum configuration), kg. | 570 |
| Type of supply current | three-phase, alternating |
| Supply voltage: | ~380 V |
| Frequency, Hz | 50 |
| Maximum power consumption: | 40 KVa |
| Maximum drying current |
150A (by agreement 200A) |
| Maximum output voltage | 100 V |
| Maximum drying time of the stator | 24 hours 58 minutes |

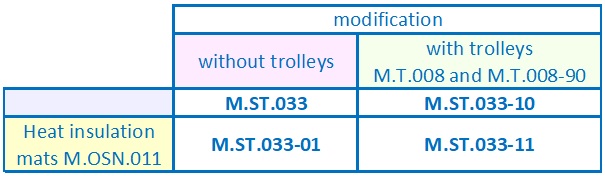

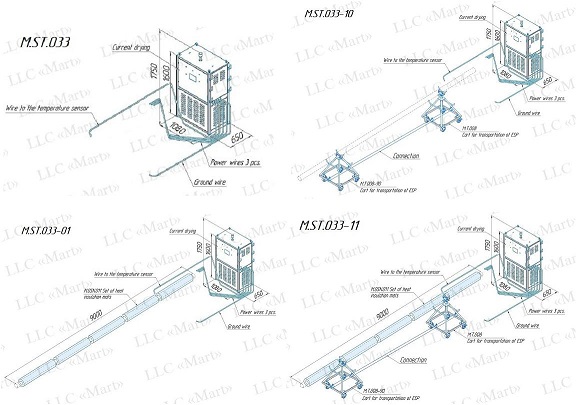

Configuration options
- modification of trolleys (M.T.008-70 + M.T.008-110 or M.T.007 + M.T.008-90)
- changing the geometric parameters of current drying.
