Intended use
This bench is designed for straightening the electric submersible motor shaft and verification of its straightness during repair.
Brief description

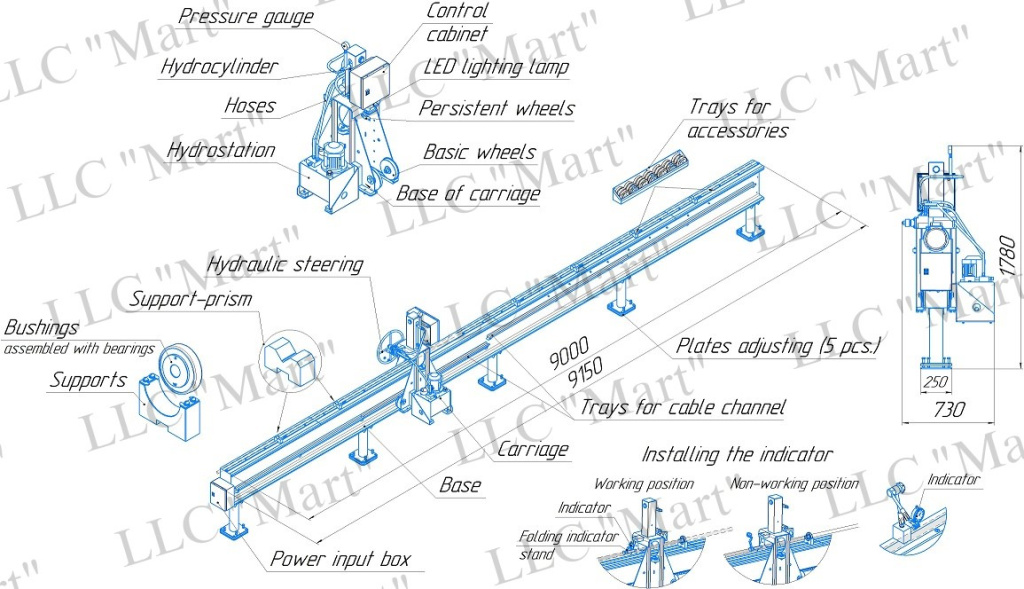

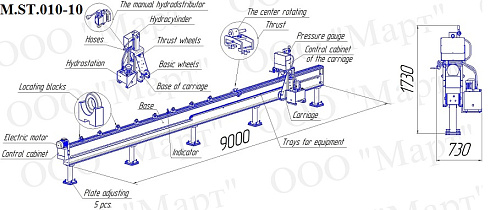

This bench includes a frame with adjustable supports, carriages, accessories (prisms) for the shaft, magnetic holder with radial runout indicator. The frame is furnished with a shelf to store accessories and a cableway to lay electric cables.
The carriage is a drive unit of the bench. It comprises hydraulic cylinder, manual hydraulic distribution valve, hydraulic station, illumination lamp, control cabinet, high pressure hoses.
Rod force is not less than 2 t.
Shaft diameters to be straightened: 12-35 mm.
Configuration options
- Frame geometry
- Power supply: 415, 460, 480В/50, 60Hz
Weight: 1500 kg

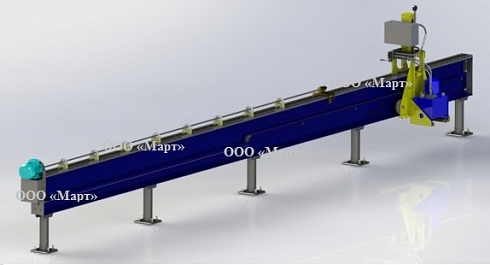

M.ST.010 Shaft straightening bench
Characteristics
Weight, kg | 1500 |
